Specifications
- Platform: Linux + ARM + FPGA
- Startup Time: ≤12 seconds
- Monitor: 15-inch LCD, 1024×768, 135° adjustable
- Battery: Built-in, ≥3 hours continuous use
- Storage: 128GB internal hard disk

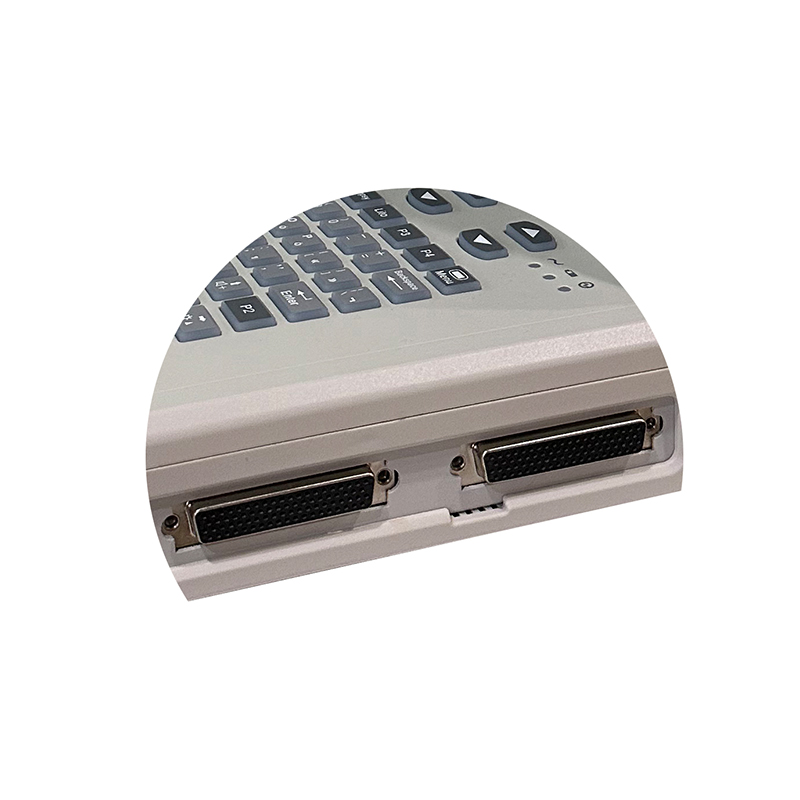

- Probe Ports: 2 universal probe ports
- I/O: USB×2, HDMI, S-Video, Video, LAN, ECG out
- Supported Formats: BMP, JPG, DCM, FRM, CIN, AVI, DICOM 3.0
- Image Modes: B, Dual/Quad View, PW, M
- Zoom: Up to 10x
- Cine Memory: B: ≥5000 frames; M/PW: ≥190s
- Languages: EN, CN, ES, FR, DE, RU, CZ + customizable
Key Features
- World’s fastest booting system (≤12 seconds)
- One machine dual-use: support ECG integration (optional)
- Built-in workstation with DICOM and report templates
- 3-hour battery life for mobile/field operation
- 15” high-res adjustable-angle display for comfort and clarity
- Customizable user-defined keys and 8-slider TGC control
- Dual probe ports and wide probe compatibility (convex, linear, rectal, backfat)
- One-touch parameter save & restore for efficiency
- Robust design with waterproof backlit control panel
- Multilingual user interface and customizable exam presets
- Lifetime Upgradeable: System supports future updates via bootloader
- OEM/ODM Ready: Customizable brand, appearance, and features
Standard Configuration
- Main Unit (Built-in 128GB HDD)
- 3C6A Convex probe
- 7L4A Linear probe
- Power Adapter
- Power Cable
- User Manual
6. Optional Accessories
- 6E1A Endocavity Convex probe
- 6C15A Micro convex probe
- 6I7A Intrarectal Linear probe
- 3L15A Back fat probe
- USB printer / B/W / color Video printer
- Barcode scanner
- Puncture rack
- ECG module

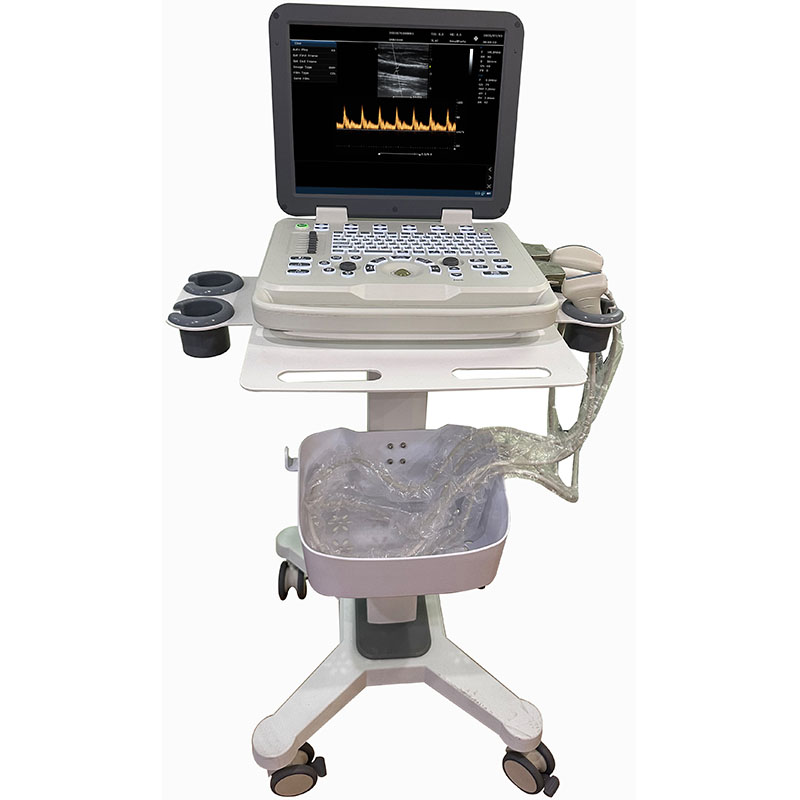

- Trolley
- USB foot switch
- Dustproof film
Dimensions and Weight
- Machine Size: 370mm (W) × 350mm (D) × 70mm (H)
- Machine Weight: 5.5 kg (excluding probes)
- Package Size: 465mm × 465mm × 230mm
- Total Weight: 9.5 kg (incl. 2 probes + adapter + cables + manual + foam + carton)
