Specifications
- Platform: Linux + ARM + FPGA, low power and stable
- Startup Time: ≤ 12 seconds
- Monitor: 15" LCD, 1024×768, adjustable 135° viewing angle
- Weight: 5.5 kg (host only); 9.5 kg with package
- Battery: Built-in lithium battery, ≥ 3 hours use
- Storage: ≥ 128GB internal hard disk

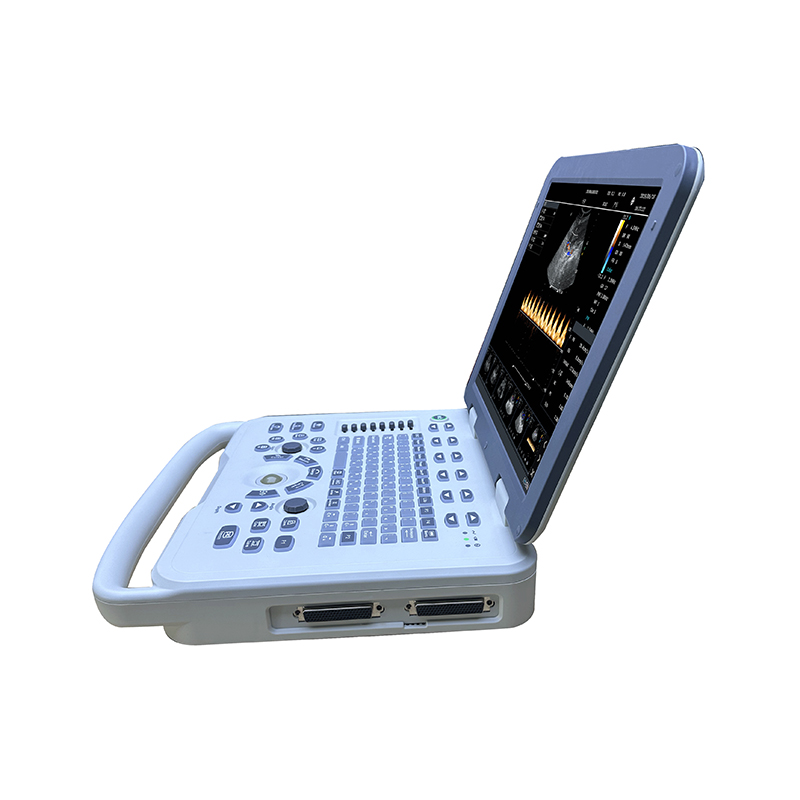

- Probe Ports: 2

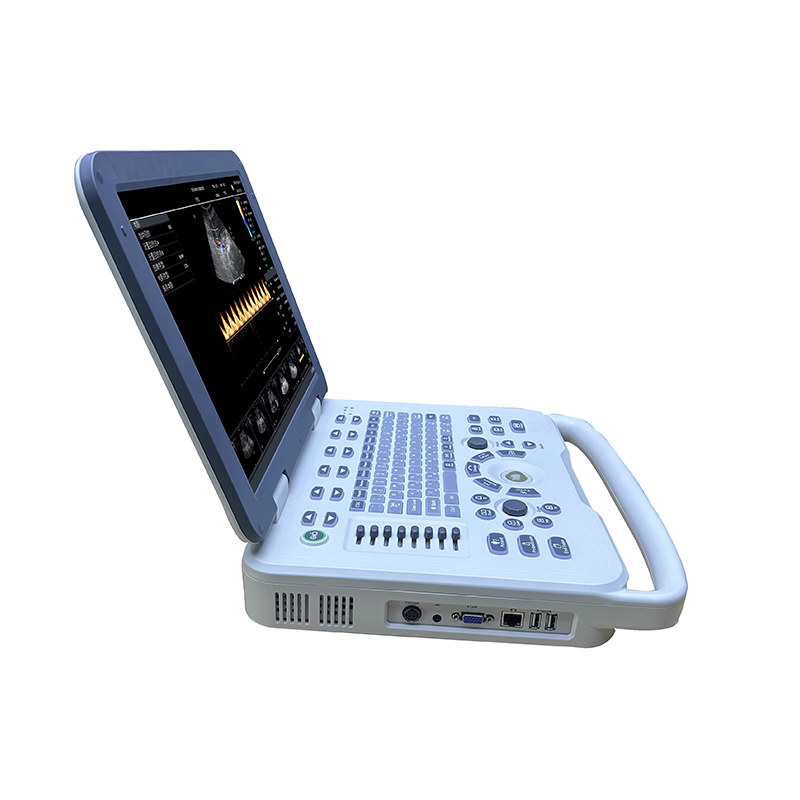

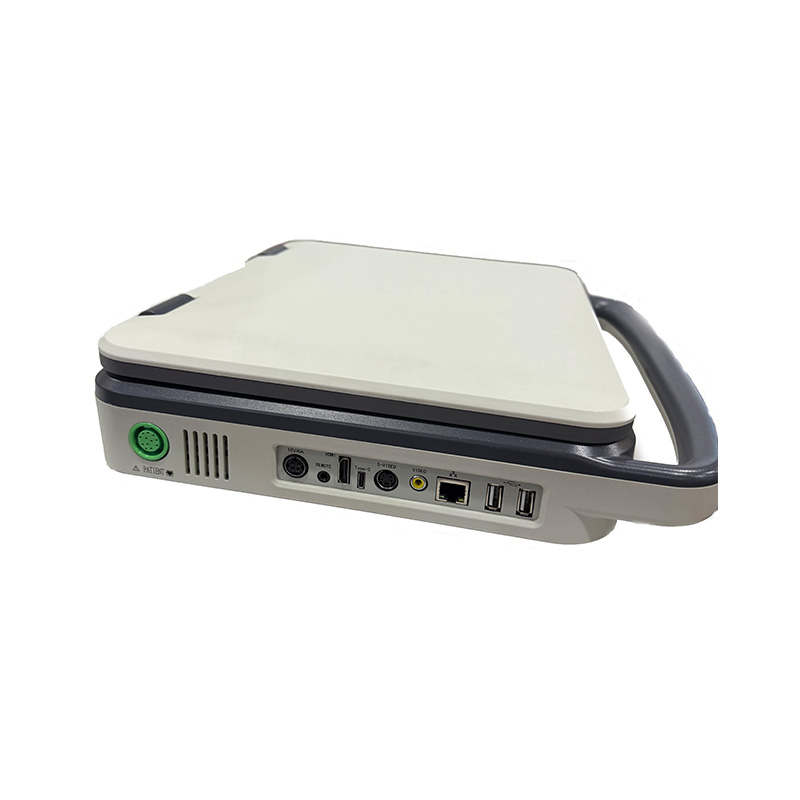

- I/O Ports: USB ×2, HDMI, LAN, ECG out, video, S-Video
- Probes Supported: Convex, Linear, Endocavity, Microconvex, Rectal
- Imaging Modes: B, M, Color, PDI,TDI, PW,Dual/Quad View
- Zoom: Up to 10×
- Image Save Format: BMP, JPG, DCM, FRM, CIN, AVI
- DICOM: DICOM 3.0 supported, built-in workstation
- Languages: EN, CN, ES, FR, DE, RU, CZ + customizable
- Cine Memory: B: ≥ 5000 frames; Color: ≥ 2300 frames
Key Features
- Dual-use System – Switch between human and veterinary presets with one click
- Ultra-fast Boot – Ready in 12 seconds for emergency & high-frequency use
- Wide Probe Support: Over 10 probe types for full-body & animal exams
- 10× Real-time Zoom – Available during scan and playback
- Built-in Workstation – Save & browse patient data, images, reports
- Comprehensive I/O Ports: HDMI, USB, LAN, ECG out, printer, and more
- ECG Integration: One device covers ultrasound + ECG needs(Optional)
- DICOM Ready – Seamless integration with hospital PACS
- Portable & Long Battery Life: 5.5kg host,3–4 hours operation, ideal for mobile/field use
- Multilingual user interface and customizable exam presets
- Lifetime Upgradeable: System supports future updates via bootloader
- Clear Imaging & High Cost-Performance: Perfect for primary healthcare
- OEM/ODM Ready: Customizable brand, appearance, and features
Standard Configuration
- Main unit (with 128GB SSD)
- 3C6A Convex probe (3.5 MHz)
- 7L4A Linear probe (7.5 MHz)
- Power adapter
- Power cable
- User manual
Optional Accessories
- 6E1A Endocavity probe
- 6C15A Microconvex probe
- 6I7A Rectal probe
- 3L15A Back fat probe (for large animals)
- Trolley
- USB foot switch
- ECG module
- USB printer / Color video printer
- Barcode scanner
- Puncture rack
Dimensions and weight
- Host: size：370mm (width) * 350mm(depth) * 70mm(thickness)
- weight: 5.5kg(with no probe)
- Including package:Size: 465mm(width) ×465mm(depth) × 230mm(thickness)
- weight: 9.5kg(host + 2 probes + power cable + adapter + manual + carton + foam)
